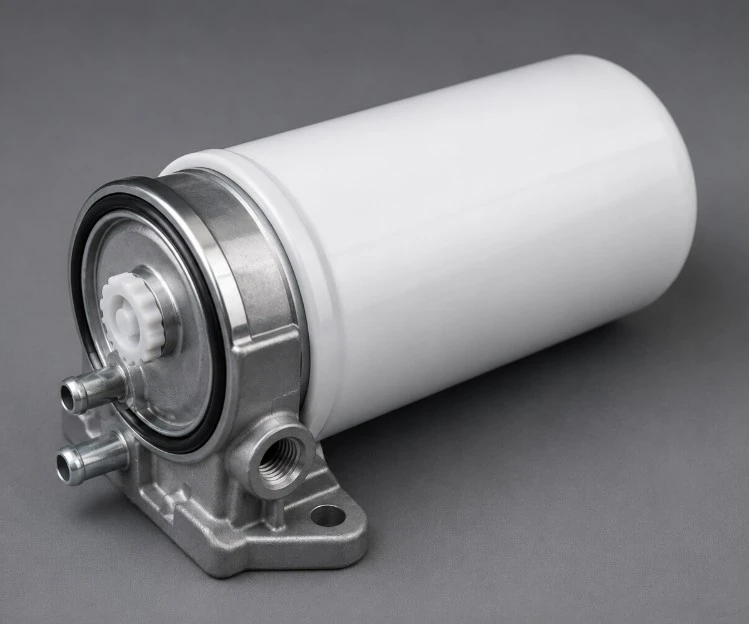

Industrial Fuel Filter

Industrial Fuel Filters are engineered to remove dirt, rust, dust, water, and other microscopic contaminants from diesel or gasoline fuel systems. This ensures clean fuel delivery, protects high-pressure common rail fuel injectors, and safeguards fuel pumps. We supply premium quality replacement industrial fuel filters compatible with major international equipment brands for power generators, construction machinery, agricultural equipment, air compressors, and heavy-duty industrial engines worldwide.

Choosing the correct media chemistry is critical to optimizing machine uptime and extending service life:

Standard Cellulose Media
Composed of organic wood pulp fibers treated with phenolic resin. It provides reliable, cost-effective filtration (10 to 30 microns) for stable, low-moisture operating environments.

Premium Synthetic Media
Engineered from melt-blown polymers. It offers lower initial flow restriction, higher dirt-holding capacity, and superior resistance to chemical degradation in ultra-low sulfur diesel (ULSD) and biodiesel blends.

Multilayer Micro-Glass Media
The ultimate grade for high-pressure common rail (HPCR) systems. It captures sub-5-micron particles with exceptional structural stability, making it ideal for high-dust mining and heavy industrial sites.

Optimized Pleat Geometry: Computer-controlled pleat spacing with hot-melt bead stabilization prevents pleat bunching and collapse, utilizing the entire surface area for maximum contaminant capture.

High-Efficiency Water Coalescing: Multi-stage synthetic media efficiently separates emulsified and free water from diesel, safeguarding injection nozzles against corrosion and fuel-lubrication failure.

Rugged Housing Construction: Formed with heavy-gauge, corrosion-resistant steel canisters that withstand continuous vibration, physical shock, and extreme cold-weather cold starts.

Leak-Proof Sealing Integrity: High-performance elastomer gaskets maintain elasticity across extreme thermal cycles, preventing external fuel leakage and air induction into the fuel system.

Our heavy-duty fuel filtration products are widely utilized to protect critical machinery across multiple global industries:

Construction & Forestry: Crawlers, excavators, dump trucks, aggregate crushers, and timber harvesters.

Power Generation: Main prime-power diesel generators, automatic standby power systems, and utility microgrids.

Agriculture & Farming: Large-wheel tractors, combine harvesters, forage blowers, and municipal irrigation pumps.

Air Compressors: Portable diesel-driven rotary screw compressors and stationary manufacturing air stations.

Marine & Terminal Operations: Auxiliary marine gensets, container handlers, terminal tractors, and tugboats.

Our manufacturing facility combines highly automated production lines with rigorous testing to ensure total consistency across every production run:

Incoming Material Inspection: All filter papers, micro-glass rolls, metal coils, and rubber gaskets undergo strict laboratory testing for thickness, density, and chemical composition.

Automated Media Pleating & Curing: Advanced pleating machinery shapes the media with precision, followed by thermal curing to set the fibers and structural geometry.

Robust Core Assembly: Perforated inner steel cores are rolled and welded to provide high collapse resistance under high-differential pressure.

Endcap Thermal Bonding: Specialized plastisol or epoxy compounds securely bond the pleated star to the metal endcaps, eliminating any risk of internal fuel bypass.

100% On-Line Leak Testing: Every completed spin-on filter is subjected to a pressurized dry-air bubble leak test before entering the packaging line.

Every filter batch is subjected to destructive and non-destructive laboratory testing in accordance with globally recognized standards:

ISO 19438: Tests the filtration efficiency and contaminant capacity of fuel filters for internal combustion engines.

ISO 4020: Evaluates pressure drop, water separation efficiency, cleanliness, and structural integrity.

ISO 2941: Verifies collapse and burst resistance of the internal filter element under severe restriction.

ISO 2942: Verifies fabrication integrity and bubble point to guarantee zero manufacturing bypass pathways.

For custom applications, specialized equipment, or private labeling, our engineering team provides comprehensive customization options:

Tailored Micron Ratings: Custom media blends designed to target specific particle distributions in sensitive fuel circuits.

Housing & Thread Customization: Custom canister heights, outer diameters, bypass pressure settings, and thread profiles.

Private Labeling & Printing: High-resolution laser etching directly on the steel canister body, customized warning labels, and fully branded individual boxes.

Flexible Batch Production: Optimized manufacturing setups to accommodate medium-sized custom runs alongside high-volume orders.

Individual Vacuum Sealing: Every finished filter is sealed in heavy-duty poly-packaging to prevent dust, rust, and moisture from contaminating the clean-side of the filter during transport.

Reinforced Double-Wall Cartons: Individual items are packed into durable, double-wall corrugated boxes built to withstand export shipping conditions.

Export Palletization: Boxes are stacked, corner-protected, wrapped in heavy stretch wrap, and secured to heat-treated export-grade wooden pallets to ensure safe loading and unloading via forklifts.
