Product Overview

Heavy-duty hydraulic systems require uncompromising protection against fluid contamination. As a premier global supplier of industrial filtration solutions, we engineer high-performance Hydraulic Return Filters for Construction Machinery designed to maintain hydraulic oil cleanliness, prevent premature component wear, and minimize equipment downtime in the harshest environments.

Technical Specifications

Item	Specification / Technical Data

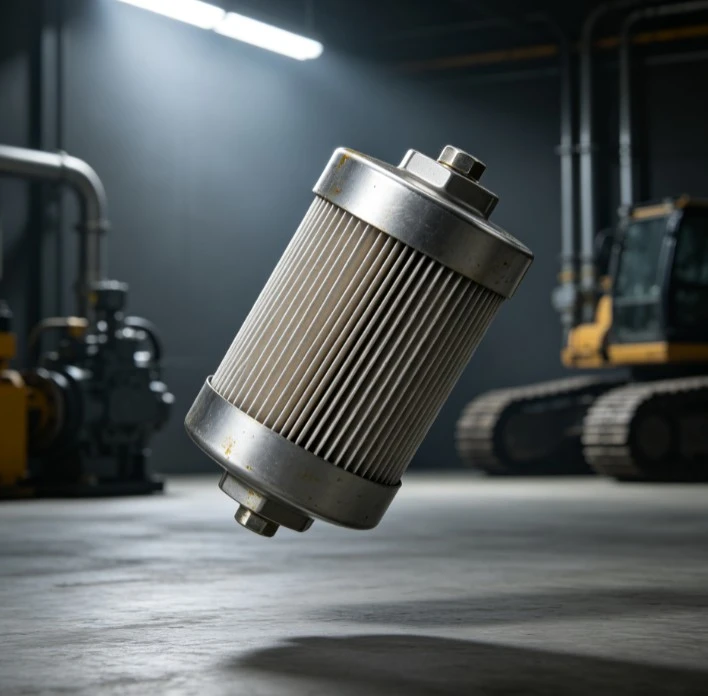

Product Name	Hydraulic Return Filter Element
Application	Construction Machinery Hydraulic Return Line
Filter Media Options	Micro-glass Fiber, Stainless Steel Wire Mesh, Composite Paper
Filtration Rating	3 micron, 5 micron, 10 micron, 20 micron, 25 micron (Customizable)
Structural Collapse Rating	10 bar, 21 bar, or customized high-pressure resistance
Seal Materials	Nitrile Rubber (NBR), Fluorocarbon (Viton), EPDM
Operating Temperature	-30 degrees Celsius to 120 degrees Celsius
Flow Rate Capacity	Up to 1000 Liters per minute (depending on model dimensions)
Bypass Valve Pressure	1.0 bar, 1.5 bar, 2.0 bar, 3.0 bar, or customized
OEM/ODM Compatibility	Fully supported based on cross-reference part numbers or drawings

Target Applications & Machinery Types

Our hydraulic return filters are widely used across a broad spectrum of heavy machinery and industrial equipment:

Machinery Categories: Hydraulic Excavators, Wheel Loaders, Crawler Bulldozers, Mobile Cranes, Drilling Rigs, Concrete Pump Trucks, Mining Trucks, and Heavy-duty Agricultural Machinery.

Equipment Compatibility: High-grade replacement filter elements engineered to match the technical specifications of major global heavy equipment brands.

Quality Control & International Testing Standards

Every hydraulic return filter we manufacture undergoes rigorous laboratory testing and quality control processes to match or exceed international standards. We utilize state-of-the-art testing equipment to verify performance indicators across several key metrics:

ISO 2941: Verification of collapse/burst resistance (ensures the structural integrity of the filter element under high differential pressure).

ISO 2942: Verification of fabrication integrity (bubble point test to confirm the quality of seals and ensure zero media defects).

ISO 2943: Verification of material compatibility with fluids (ensures consistent performance across various hydraulic oils, synthetic fluids, and operating temperatures).

ISO 3723: Method for end load test (verifies the axial strength of the filter element).

ISO 3724: Verification of flow fatigue characteristics (ensures the pleated structure survives high-frequency flow pulsations).

ISO 3968: Evaluation of pressure drop versus flow characteristics.

ISO 16889: Multi-pass method for evaluating filtration performance (verifies the particle-removal efficiency and dirt-holding capacity).

Manufacturing Capability & Production Process

Our modern production facility is designed to meet high-volume global demand while maintaining uncompromising quality standards. Our manufacturing process includes:

Automated Pleating Production Lines: Ensure uniform pleat spacing and depth, which prevents pleat bunching and maximizes the usable surface area.

Cleanroom Assembly Areas: Crucial for preventing environmental dust from contaminating the filter elements during the final assembly and sealing stages.

Batch Traceability: Every production run is labeled with batch codes, allowing us to track raw materials and test results back to the source for absolute accountability.

OEM, Customization & Replacement Services
We specialize in supporting distributors and heavy-machinery fleet managers with flexible, custom-tailored manufacturing services.

Custom Engineering Capabilities

Custom Dimensions: Custom outer diameters, inner diameters, and overall heights to fit non-standard or proprietary filter housings.

Tailored Media Formulations: Anti-static media, water-removal media, or extreme-temperature resistant materials to suit specialized applications.

Private Labeling & Branding: Professional custom packaging, customized end cap stampings, and branded printing.

FAQ

Q: What is the recommended replacement interval for a hydraulic return filter in construction machinery?

A: Generally, hydraulic return filters on heavy machinery should be replaced every 500 to 1,000 operating hours. However, the exact interval depends on the working environment, the quality of the hydraulic oil, and the equipment manufacturer guidelines. High-dust mining and excavation environments may require more frequent changes, or a change immediately when the system pressure drop indicator signals a restriction.

Q: How do I know if my hydraulic return filter is failing or clogged?

A: Common symptoms of a clogged return filter include an activated bypass indicator light, an increase in system operating temperature, sluggish hydraulic response times, unusual noise from the hydraulic pump, or visible particulate contamination during routine oil analysis.

Q: Why is micro-glass fiber media preferred over standard paper media for hydraulic filters?

A: Micro-glass fiber media features much smaller, inorganic fibers with irregular shapes that allow for a higher pore density. This construction provides much higher filtration efficiency (absolute rating), lower flow resistance, and significantly greater dirt-holding capacity. Standard paper (cellulose) media absorbs water and swells, resulting in shorter service life and less reliable particle capture.
